How can I replace iPhone holder on HERO rotor

The iPhone holders attached to the HERO rotor are replaceable components of InsideMaps equipment.If they incur physical damage, replacements can be ordered through the InsideMaps web shop.

Below  is a guide on how to exchange the holders on the HERO rotor:

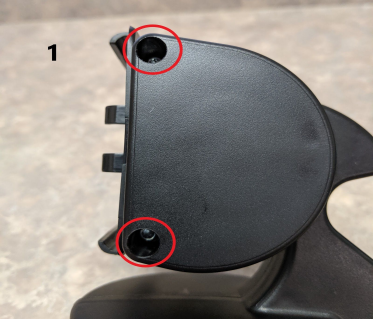

1. Please locate and unscrew the screws on the head of the HERO.

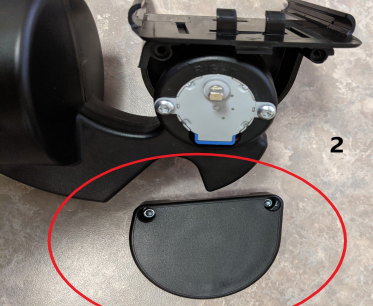

2. Remove the plastic lid to access the mechanical compartment.

3. Slide off the holder plate from the HERO.

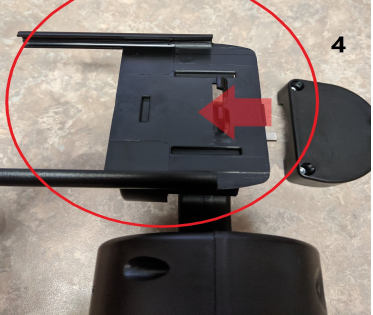

4. Slide on the new  holder plate.

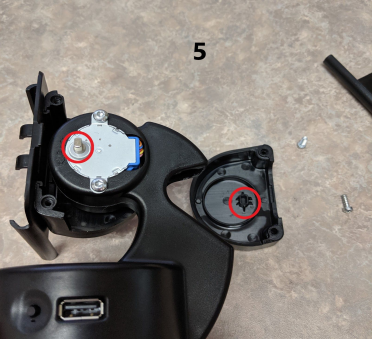

5. Replace the plastic piece on the side. Make sure that the metal shaft is lined up in the hole on the plastic lid.

6. Insert and tighten the screws.

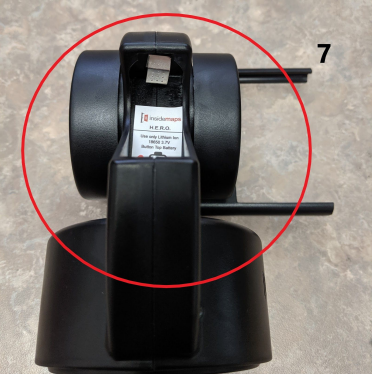

7. Inspect the HERO to make sure everything lines up correctly. If it appears level (Figure 7), then it is correct.

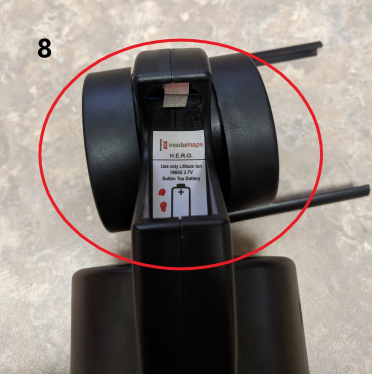

However, if it is not level (Figure 8), the plastic was not inserted onto the metal shaft correctly and needs to be repositioned.
